Product name : Commutator Fusing Machine
Color : RAL9010 or as per customer requirement
Used for : fusing commutator
Usage : welding
Application : motor armature
Type : automatic
Touch Screen Commutator Fusing Machine , Hot Stacking Machine With Miyachi Power
Quick Detail:
Description:
This type of commutator hot stacking machine adopts MIYACHI DC invert control power, Omron indexing servo motor, Omron remote controller.
Main technical data:
| Power supply performance | |
| Model | IS-120B |
| Inverting frequency | 1KHz, 800Hz, 600Hz |
| Welding regulating number | 15 |
| Max output current | 200A |
| Unload voltage | 10.0V |
| Control mode | Primary define current effective value, secondary define current effective value, primary define current peak value, secondary define voltage effective value, define phase |
| Time-setting | |
| (A) Rise 1, Rise 2 | 000-400ms or 00-20cycles |
| (B)Weld 1, weld 2 | 000-600ms or 00-30 cycles |
| (C) Cooling | 000-999ms or 00-99cycles |
| Heat quantity setting | 0.1-20KA, 0.1-9.99V, 0.1-20.0KW |
| Monitor setting | 0.00-20KA , 0.100-9.99V, 0.00-20.0KW |
| Power supply | 3 phase 220/240/380/400/480VAC+10%-15%50/60Hz |
| Dimension | 186mm(W)X620mm(D)X269mm(H) |
| Weight | 15KG/pc |
Roma invert transformer specification
| Model | TDC-5543 |
| Rated capacity | 40.0 KVA |
| Max input voltage | 300V or 600V |
| Input frequency | 1KHz |
| Secondary unload voltage | 9.3V |
| Max output current | 700A |
| Rated usage rate | 8.5% or 11% |
| Cooling mode | Water cooling (3L/min) |
| Weight | 16Kg |
Complete unit performance
| Commutator type | Hook type |
| Wire diameter | 0.1~1mm |
| Armature O.D | 20~82mm |
| Commutator O.D | 15~40mm |
| Shaft O.D | 5~15mm |
| Commutator hook number/slot number | 4hooks≤Odd number hook≤36hooks |
| Positioning mode | Photo electrically |
| Indexing mode | Servo indexing |
| Data setting | Touch screen setting and power supply data setting |
| Control power supply mode | close-circuit feedback, high precision invert |
| Cooling mode | Cooling water machine group(cooling water input end AC 220V 50/60Hz) |
| Compress air | 4kg/cm2-6kg/cm2 |
| Machine power supply | three phase AC380V±10%50HZ40KW |
| Total weight | 800kg |
| Machine dimension | 1000x 950x 1800mm |

|
|

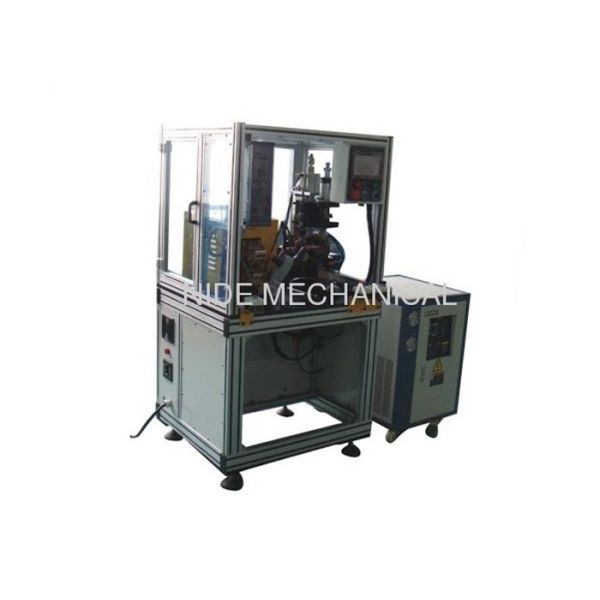

Touch Screen Commutator Fusing Machine , Hot Stacking Machine With Miyachi Power Images |
